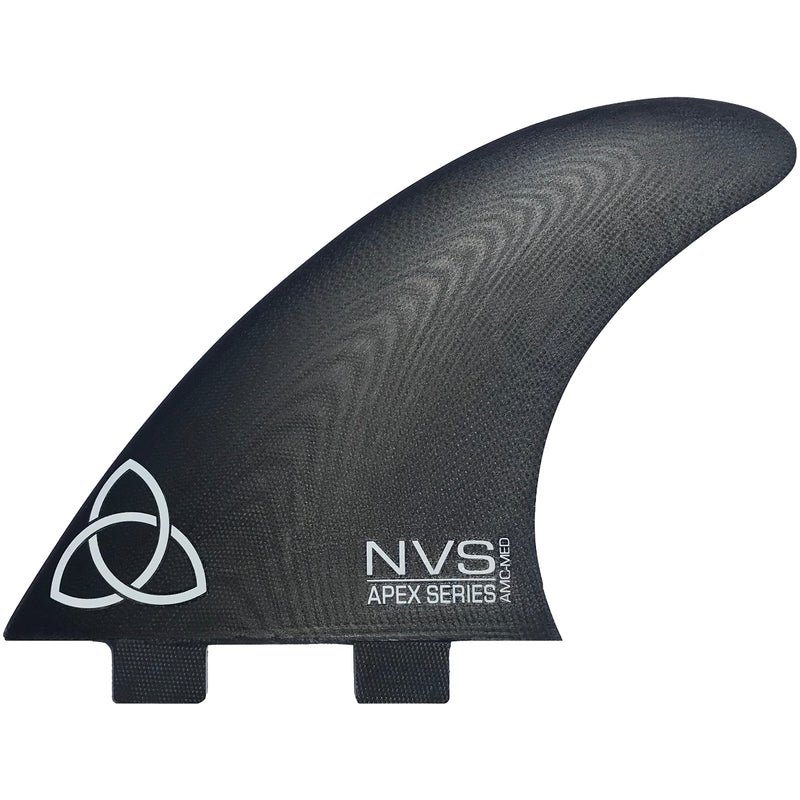

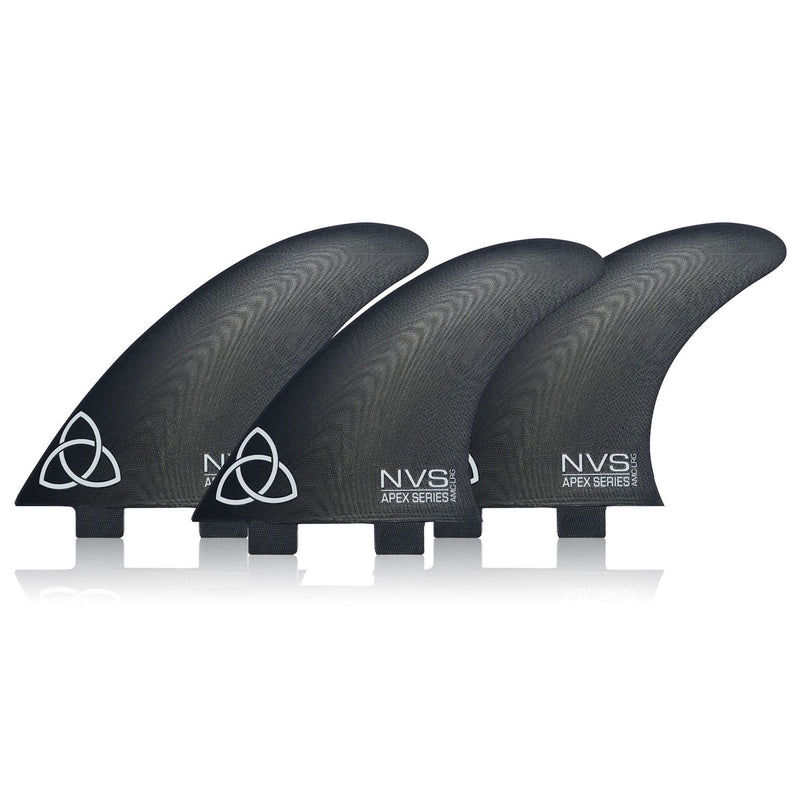

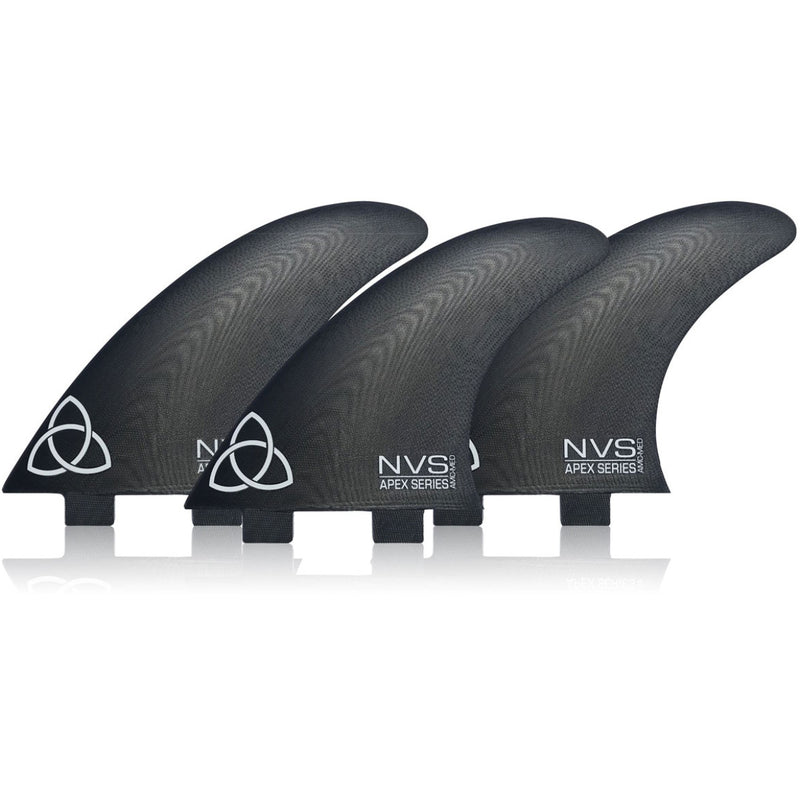

NVS AM-Comp Apex Series FCS Compatible Tri Fin Set

Regular price $72.00
Sale price $72.00 Regular price $90.00
Sale Sold out
Unit price
/per
Shortboard Fins:
Color:
Black
This item is on backorder. We will ship it when it comes in stock.
Hurry! Only 1 left in stock!
eligible for
free shipping

SKU: NVSAMCMPAFCSBLKM

Product Info

NVS designed this high performance template with the competitive surfer in mind. The wide base provides increased drive off the bottom while the raked back profile and refined tip offer an ideal balance of control and release off the top. NVS paired the side fins with a Smaller center fin for increased maneuverability. This coupled with their proprietary SeriesIII foiling make these fins the ideal template for radical, progressive surfing.

NVS is releasing the AM-Comp fins in their Apex Series construction; made with a solid piece of precision foiled G10 fiberglass for the ultimate in performance and durability. The combination of highly durable material and precision foiling yield a fin that is stronger and has a more ideal flex pattern than your traditional honeycomb or composite fins. G10 is made by compressing layers of fiberglass and epoxy resin and baking it an autoclave to have the maximum strength of any fiberglass available.

Fin Size Detail

Size Side Fins Center Fins
Medium
  • Area: 14.95"²
  • Height: 4.52"
  • Base: 4.52"
  • Sweep: 36.7°
  • Foil: Flat SeriesIII
  • Area: 13.39"²
  • Height: 4.29"
  • Base: 4.29"
  • Sweep: 36.7°
  • Foil: 50/50 SeriesIII
Large
  • Area: 15.90"²
  • Height: 4.65"
  • Base: 4.65"
  • Sweep: 36.7°
  • Foil: Flat SeriesIII
  • Area: 14.95"²
  • Height: 4.52"
  • Base: 4.52"
  • Sweep: 36.7°
  • Foil: 50/50 SeriesIII

Product Info

NVS designed this high performance template with the competitive surfer in mind. The wide base provides increased drive off the bottom while the raked back profile and refined tip offer an ideal balance of control and release off the top. NVS paired the side fins with a Smaller center fin for increased maneuverability. This coupled with their proprietary SeriesIII foiling make these fins the ideal template for radical, progressive surfing.

NVS is releasing the AM-Comp fins in their Apex Series construction; made with a solid piece of precision foiled G10 fiberglass for the ultimate in performance and durability. The combination of highly durable material and precision foiling yield a fin that is stronger and has a more ideal flex pattern than your traditional honeycomb or composite fins. G10 is made by compressing layers of fiberglass and epoxy resin and baking it an autoclave to have the maximum strength of any fiberglass available.

Fin Size Detail

Size Side Fins Center Fins
Medium
  • Area: 14.95"²
  • Height: 4.52"
  • Base: 4.52"
  • Sweep: 36.7°
  • Foil: Flat SeriesIII
  • Area: 13.39"²
  • Height: 4.29"
  • Base: 4.29"
  • Sweep: 36.7°
  • Foil: 50/50 SeriesIII
Large
  • Area: 15.90"²
  • Height: 4.65"
  • Base: 4.65"
  • Sweep: 36.7°
  • Foil: Flat SeriesIII
  • Area: 14.95"²
  • Height: 4.52"
  • Base: 4.52"
  • Sweep: 36.7°
  • Foil: 50/50 SeriesIII

Product Details

  • Size: Medium
  • Fin Type: FCS Compatible (FCS II Compatible with Infill Kit)
  • Fins in Set: Three
  • Fin Configuration: Thruster
  • Construction: Fiberglass and Epoxy Resin

Additional Info

NVS APEX SERIES FINS


NVS Apex Series Fiberglass Fins: The Pinnacle of Performance.

Better Materials:

  • Apex: Made using G10; an industrial grade fiberglass, which is manufactured to the highest quality standard. Made by heating special fibers with epoxy resin under intense pressure in order to make a perfect panel; they eliminated the errors which can occur by using a hand layup. By heating the fibers and resin under pressure NVS is left with the ideal resin to fiber ratio in order to maximize strength and decrease weight.
  • Apex Flex: Made using Volan Fiberglass for increased flex through the body of the fin.

Better Foiling:
One of the main benefits to NVS' Apex line of fins is that each fin is cut on a CNC machine using the exact foil profiles NVS developed.

  • SeriesIII: The benchmark of high performance. NVS uses a very specific foil that was derived from a series of NACA foils whose purpose was to increase laminar flow (speed) while decreasing turbulent flow (drag). This translates to a fin that allows for faster/easier generation of speed and has a wider angle of attack, which means you won’t lose as much speed while bottom turning or going through hard cutbacks.
  • Concave: or inside foils are used on board where you want easier rail to rail transitions. Concave foils will generate more hold at slower speeds but will not be able to go as fast as flat foiled fins.
  • Retro: Used on some longboard fins such as the Da Clutch and Gypsy which feature a more period appropriate foil to suite the classic board designs.

Better Manufacturing:
By using cutting edge CNC machines and precise designs they machine cut each fin in order to have the perfect foil and finish. All NVS fins are designed 100% in house using advanced 3D software.

This is what makes the Apex Series G10 fins the strongest most high performance fins in the world.
