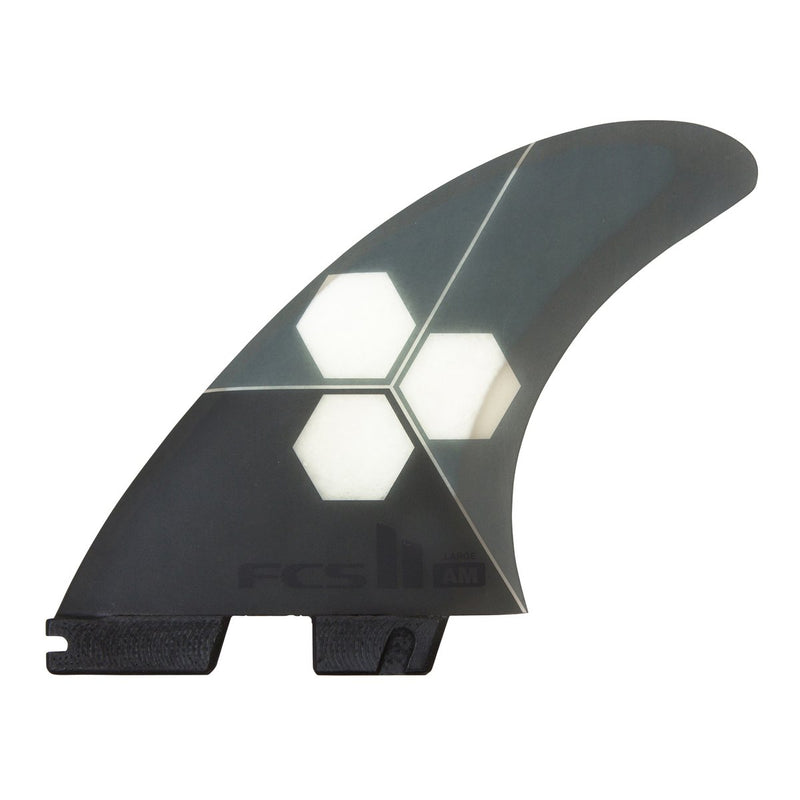

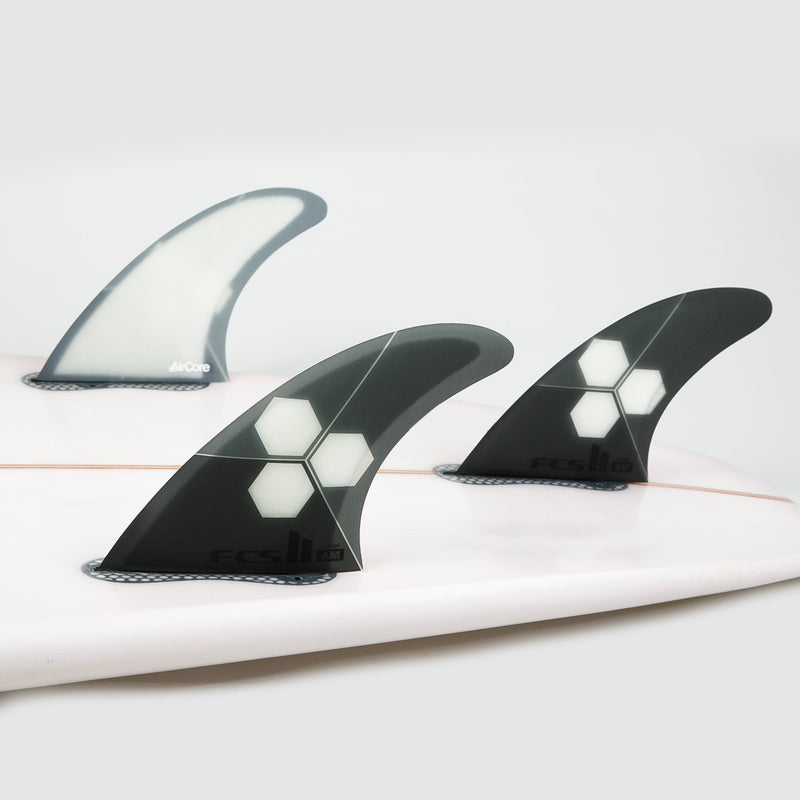

Al Merrick's 'AM' shaper fin in ultralight AirCore. Raked side fins produce exceptional speed and drive. Al Merrick's template is designed for radical, progressive surfing. The raked side fins produce exceptional speed and drive, while the Smaller center fin on the Medium and Large template offer quick release through turns. Updated PC construction featuring ultralight AirCore. Perfect for hollow steep waves and punchy beach breaks. Designed to fit the FCS II Fin System on performance boards with deep concaves and moderate-to-extreme rocker.
Fin Size Detail
Size
Side Fins
Center Fin
Small
Base: 4.37" [111mm]
Depth: 4.37" [111mm]
Area: 13.71"² [8846mm²]
Sweep: 35.5°
Foil: Flat
Base: 4.37" [111mm]
Depth: 4.37" [111mm]
Area: 13.71"² [8846mm²]
Sweep: 35.5°
Foil: Flat
Medium
Base: 4.55" [116mm]
Depth: 4.52" [115mm]
Area: 14.89"² [9608mm²]
Sweep: 36.6°
Foil: Flat
Base: 4.34" [110mm]
Depth: 4.41" [112mm]
Area: 13.72"² [8852mm²]
Sweep: 35°
Foil: Flat
Large
Base: 4.61" [117mm]
Depth: 4.70" [119mm]
Area: 15.63"² [10083mm²]
Sweep: 36.3°
Foil: Flat
Base: 4.47" [114mm]
Depth: 4.45" [113mm]
Area: 14.68"² [9469mm²]
Sweep: 38.6°
Foil: Flat
Product Info
Al Merrick's 'AM' shaper fin in ultralight AirCore. Raked side fins produce exceptional speed and drive. Al Merrick's template is designed for radical, progressive surfing. The raked side fins produce exceptional speed and drive, while the Smaller center fin on the Medium and Large template offer quick release through turns. Updated PC construction featuring ultralight AirCore. Perfect for hollow steep waves and punchy beach breaks. Designed to fit the FCS II Fin System on performance boards with deep concaves and moderate-to-extreme rocker.
Fin Size Detail
Size
Side Fins
Center Fin
Small
Base: 4.37" [111mm]
Depth: 4.37" [111mm]
Area: 13.71"² [8846mm²]
Sweep: 35.5°
Foil: Flat
Base: 4.37" [111mm]
Depth: 4.37" [111mm]
Area: 13.71"² [8846mm²]
Sweep: 35.5°
Foil: Flat
Medium
Base: 4.55" [116mm]
Depth: 4.52" [115mm]
Area: 14.89"² [9608mm²]
Sweep: 36.6°
Foil: Flat
Base: 4.34" [110mm]
Depth: 4.41" [112mm]
Area: 13.72"² [8852mm²]
Sweep: 35°
Foil: Flat
Large
Base: 4.61" [117mm]
Depth: 4.70" [119mm]
Area: 15.63"² [10083mm²]
Sweep: 36.3°
Foil: Flat
Base: 4.47" [114mm]
Depth: 4.45" [113mm]
Area: 14.68"² [9469mm²]
Sweep: 38.6°
Foil: Flat
Product Details
Size: Small / Medium / Large
Fin Type: FCS II
Fins in Set: Three
Fin Configuration: Thruster
Construction: Performance Core + AirCore
Product Construction
Performance Core + AirCore
Performance Core (PC) fins are made using a multi-layered resin transfer molding process. The flex pattern in PC fins extends progressively from the base through to the tip, helping the surfer to maintain drive and hold through a turn. This versatile fin Construction is light and can be used in a variety of different conditions. Fins with AirCore Technology feature a pressed polyurethane foam core that mimics the geometric Foil of the fin. AirCore technology reduces the amount of Fiberglass required in the RTM molding process making it much lighter while allowing total manipulation of the flex.
